Coolant Leak Repair: Warning Signs, Causes and Costs

A puddle under the car is one way a coolant leak gets your attention. Having to refill the reservoir again is another. Either way, the useful question is the same: where is the coolant going?

Coolant leak repair starts with locating the loss and checking whether the engine has overheated. The fix might involve a hose, radiator, water pump, reservoir or housing. An internal engine leak requires a different investigation. The size of the puddle cannot tell you which repair you need—or what it will cost.

Here is how to make sense of the warning signs, understand an estimate and decide what to do next.

When to stop driving

If the temperature gauge rises above normal, an overheating warning appears, or steam comes from under the hood, pull over as soon as it is safe and switch off the engine. Arrange a tow if the vehicle is overheating or losing coolant rapidly. Trying to finish the trip can turn a cooling-system repair into engine damage.

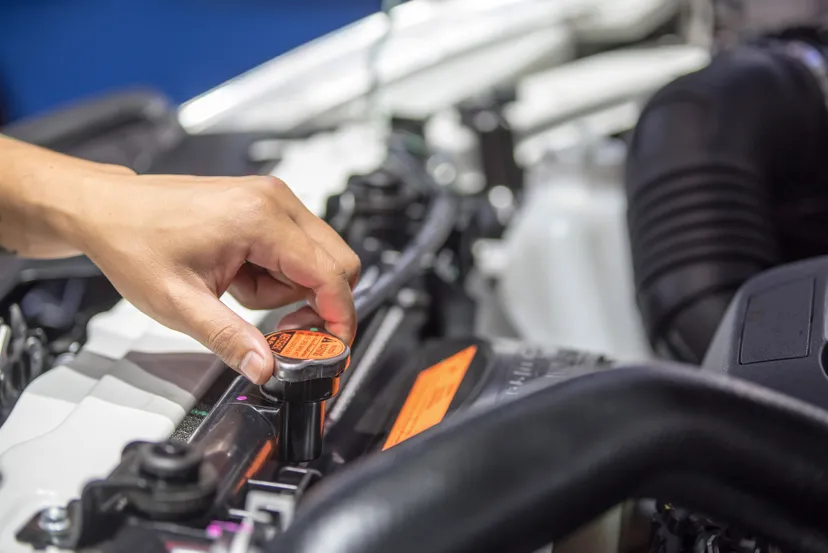

Never loosen a radiator or pressurized reservoir cap while the engine is hot. Scalding coolant can escape under pressure. Let the engine cool completely before checking the reservoir, follow the owner’s manual, and keep hands clear of fans and belts. An electric fan may start even with the engine off.

A normal gauge does not make an unexplained coolant loss safe to ignore. Contact a shop before continuing the trip; a top-up does not repair the leak.

Is the puddle actually coolant?

Clear water beneath a car after the A/C has been running can be normal condensation. Coolant may leave colored fluid or dried residue, and you may notice a sweet smell. Color alone is not a reliable way to identify a fluid or select the right replacement coolant.

Look for a pattern: is the reservoir level dropping when checked under the same cold-engine conditions? Does the spot appear after driving, overnight, or only after a longer trip? A photo of the puddle or residue can help explain the concern. Do not taste automotive fluids or handle them to identify them.

Tell the technician about recent cooling-system work and any coolant you have added. Those details are more useful than guessing which part is leaking.

Where coolant leaks can start

Coolant can run along a hose, engine surface or lower cover before reaching the ground. The wettest spot is a clue, not necessarily the source.

On a phone, swipe the table sideways to read both columns.

Losing coolant without a visible leak

A clean driveway does not rule out a leak. Coolant may escape onto a hot surface and evaporate, leaving residue rather than a puddle. Some leaks appear only under particular operating conditions.

Internal leakage is another possibility. Coolant loss with persistent white exhaust, rough running or a history of overheating deserves closer investigation. Those symptoms are clues; they do not establish that the head gasket is the failed part.

The diagnosis should separate an external leak from coolant entering the engine. If the evidence points to internal damage, our engine repair and diagnostics team can explain what further testing is needed before discussing major repairs.

How a technician finds the cause

The starting point is the vehicle’s history, coolant level and visible evidence. A cooling-system pressure test can help expose a leak while the technician inspects the system. A falling pressure reading needs investigation; it does not identify a particular failed part by itself. Compatible tracer dye may help locate an elusive leak.

If overheating is part of the complaint, the investigation must also consider coolant circulation and airflow. A fan fault can cause overheating without being a leaking component. The temperature behavior helps guide cooling fan diagnosis and other tests.

For the wider picture, see our cooling-system repair guide. The goal is to explain both the coolant loss and any temperature problem.

What determines coolant leak repair cost?

Your vehicle’s year, make, model, engine and the confirmed leak source determine the estimate. There is no useful single price for a “coolant leak.” Replacing an accessible hose and reaching a buried water pump involve very different amounts of work.

A relatively inexpensive seal can be costly to reach. Depending on the engine, access may require removal of an intake manifold, brackets, covers or other assemblies. Those parts may be removed and reinstalled rather than replaced; required gaskets or seals should be identified separately.

A timing-belt-driven water pump also raises questions about the belt, tensioners, service history and overlapping labor. Ask why each related part is recommended. Sharing access can make a combined repair sensible, but the estimate should explain the scope.

Before comparing totals, ask:

• What leak has been confirmed? The estimate should name the component or describe any testing still needed.
• Which parts are included? Clarify whether the repair uses a seal, a complete housing or another assembly.
• What does the labor cover? Access, removal, installation, filling and verification all matter.
• Are coolant and required supplies included? Compare complete repair totals.
• Has overheating caused additional damage? Repairing a leak and repairing engine damage are separate scopes of work.

A fair estimate makes the work understandable. A low advertised starting price cannot tell you what your particular car needs.

Replacing the part is only part of the repair

After the leak is repaired, the system needs the correct coolant and the manufacturer’s filling and air-removal procedure. Trapped air can interfere with circulation. The repair should then be checked for leaks and proper operation.

A coolant flush cannot seal a cracked housing. Maintenance also needs to follow the vehicle’s specifications, not a universal mileage rule. Our maintenance and inspections page explains that vehicle-specific approach.

Get a coolant leak checked in Las Vegas

Busy Bots Auto Repair offers free inspections at 6940 W Patrick Ln, Las Vegas, NV 89113. Tell us when the coolant drops, whether the engine has overheated and what has already been repaired.

We can explain the initial findings and whether more testing is needed. Ask what the free inspection covers; additional diagnostic work and repairs should be explained before you authorize them.

Contact Busy Bots or call 702-399-7007. If the engine is overheating or coolant is escaping rapidly, arrange a tow instead of driving to the shop.

Frequently asked questions

Can I drive with a small coolant leak?

There is no dependable safe distance. A small visible drip does not reveal how much coolant remains or how the leak changes as the engine warms. Get advice before driving; stop and arrange a tow for overheating, steam or rapid coolant loss.

Why is my car leaking coolant but not overheating?

The system may still be cooling the engine despite the loss. That does not establish that the leak is harmless. Have it checked before the level falls further or the problem worsens.

Does white exhaust mean a blown head gasket?

White exhaust alone is not enough to identify a failed head gasket. Persistent exhaust vapor together with coolant loss or rough running calls for testing. Other engine faults can produce similar symptoms.

Can I keep adding coolant?

Repeated top-ups leave the underlying problem unresolved. Check the level only with the engine cold and follow the owner’s manual for coolant specification and fill level. Do not select coolant by color alone or assume different products can be mixed.

Should I use a stop-leak product?

Do not add sealant as a substitute for diagnosing the loss. Some products can restrict cooling-system passages, and vehicle manufacturers may prohibit them. If you have already used one, tell the technician what product and how much.

Technical references: Ford coolant-check precautions; HELLA leak testing and air removal; Fel-Pro on unexplained coolant loss. Your vehicle’s service information determines the exact procedure.
